Toyota Tundra Oil Service Guide
Changing the oil in your Tundra? We've got step-by-step instructions, helpful videos, part numbers and recommended tools, and some tips and tricks too.
NOTE: We're still creating this guide. Please check back later!

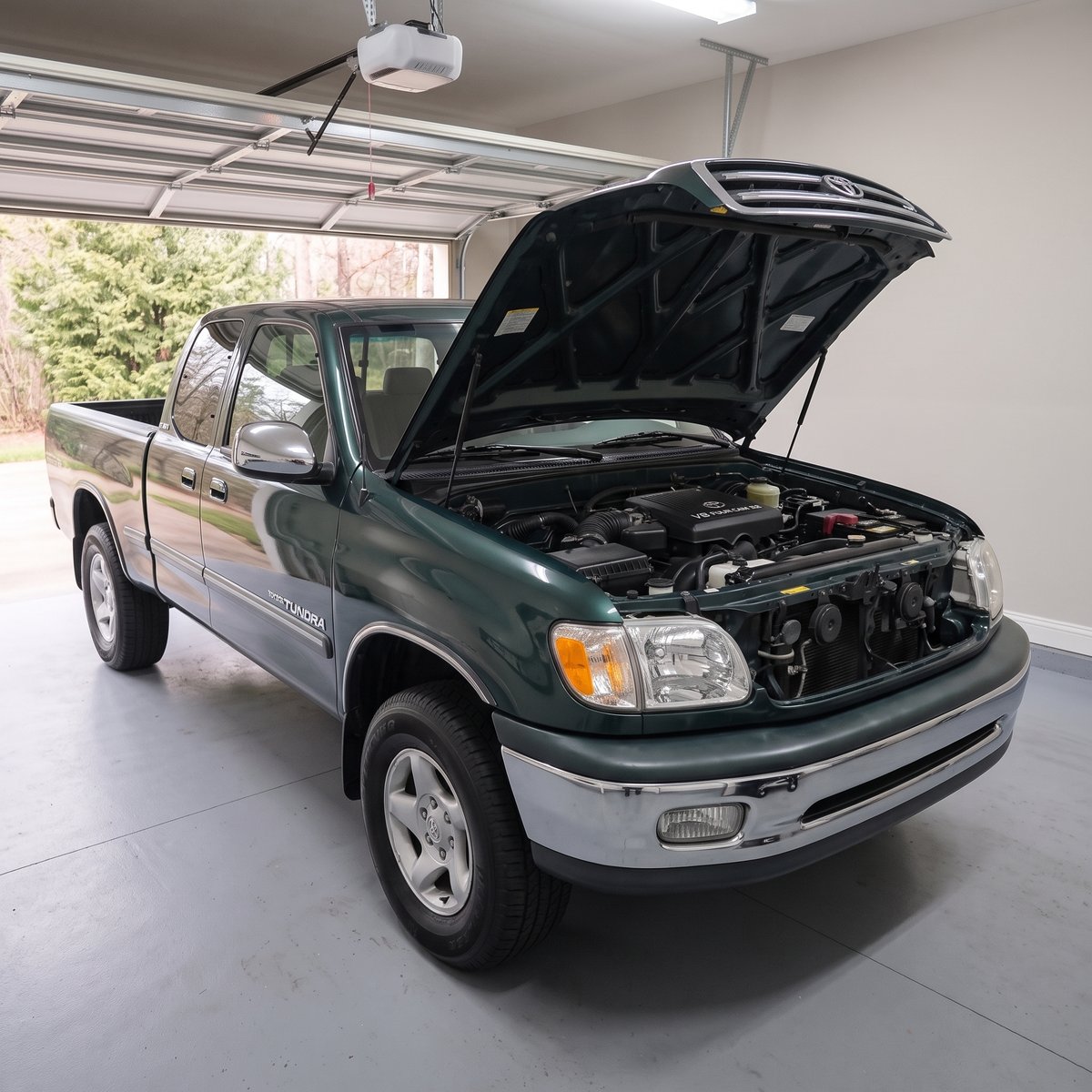

| Vehicle Specs: 1st Gen Toyota Tundra (2000–2006) | |
|---|---|
| Engine code | 5VZ-FE (3.4L V6 '00–'04) / 1GR-FE (4.0L V6 '05–'06) / 2UZ-FE (4.7L V8) |
| Engine size and configuration | 3.4L V-6 / 4.0L V-6 / 4.7L V-8 |
| Engine oil capacity w/ filter change | 5.5 US qts (3.4L) / 5.5 US qts (4.0L) / 6.5 US qts (4.7L) |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 39 Nm / 29 ft lbs (3.4L & 4.7L) / 40 Nm / 30 ft lbs (4.0L) |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |

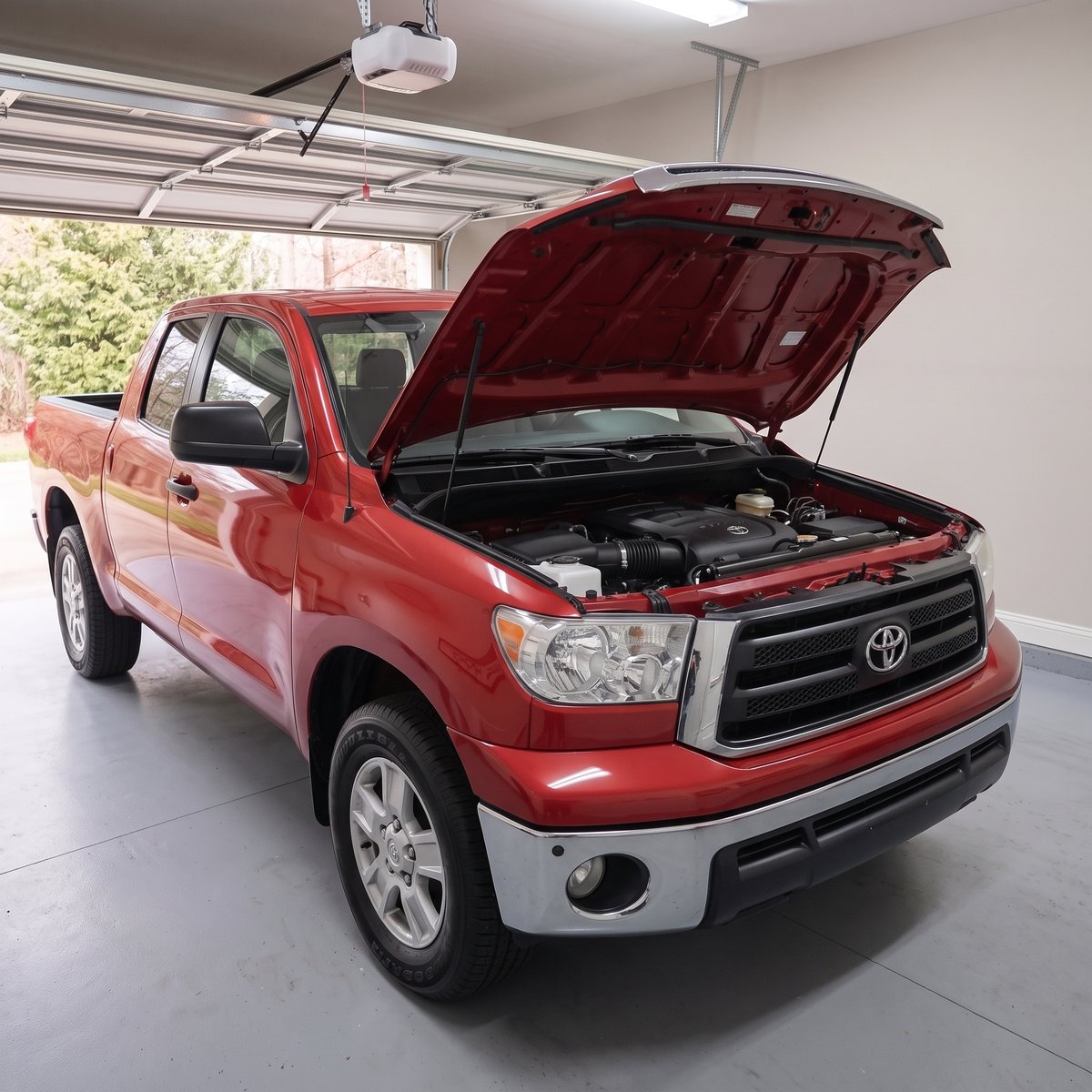

| Vehicle Specs: 2nd Gen Toyota Tundra (2007–2021) | |
|---|---|
| Engine code | 1GR-FE (4.0L V6) / 2UZ-FE (4.7L V8 '07–'09) / 1UR-FE (4.6L V8 '10–'19) / 3UR-FE (5.7L V8) / 3UR-FBE (5.7L Flex Fuel) |
| Engine size and configuration | 4.0L V-6 / 4.7L V-8 / 4.6L V-8 / 5.7L V-8 |
| Engine oil capacity w/ filter change | 5.5–6.4 US qts (4.0L) / 6.5 US qts (4.7L) / 7.9 US qts (4.6L) / 7.9–8.5 US qts (5.7L) |
| Engine oil viscosity (SAE) | 5W-30 (4.0L '07–'09 & 4.7L) / 0W-20 (4.0L '10+, 4.6L, & 5.7L) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs (4.0L, 4.6L, 5.7L) / 39 Nm / 29 ft lbs (4.7L) |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Cartridge cap for 4.6L & 5.7L; Spin-on filter for 4.0L & 4.7L) |
| Vehicle Specs: 3rd Gen Toyota Tundra (2022–2026) | |
|---|---|
| Engine code | V35A-FTS (i-FORCE 3.4L TT V6) / V35A-FTS (i-FORCE MAX 3.4L TT V6 Hybrid) |
| Engine size and configuration | 3.4L Twin-Turbo V-6 / 3.4L Twin-Turbo V-6 Hybrid |
| Engine oil capacity w/ filter change | 7.7 US qts |
| Engine oil viscosity (SAE) | 0W-20 |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Cartridge filter) |
