Most DIYers have felt the frustration of accidentally breaking a part or tool while working on their vehicle. If you own a Toyota, Lexus, or Scion, with a cartridge-style oil filter, you probably know how notoriously stubborn these housings can be.

When staring down a tight filter housing, you might notice raised plastic tabs or fins near the base and wonder what tool you need to grip them. Many people think they must use a specific wrench style - one with notches incorporated into the side, like the one pictured below, to interface with this system.

However, using a notched wrench on these housings is a major mistake. Here is why you should avoid notched filter wrenches and how upgrading to a precision, no-notch tool will save your engine and your weekend.

The Misunderstood Plastic Tabs

To understand why a notched wrench is dangerous, you first need to understand the anatomy of a cartridge filter housing. The factory permanent housing - usually made of plastic - has two distinct features: the multi-flute hex ring around the top, and the breakable tabs around the wider base.

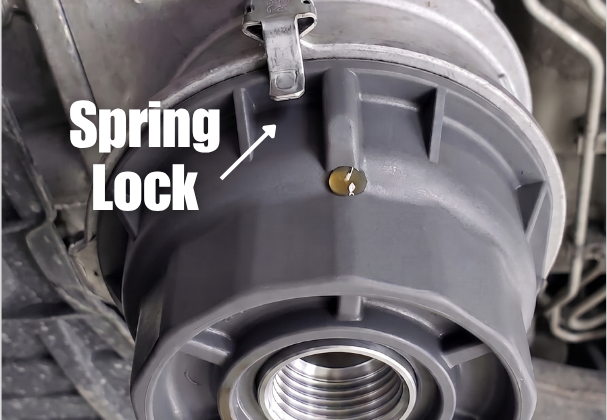

A common misconception is that those lower tabs or fins are designed to be involved in the process of removing or installing the cap. They are not. Those tabs are strictly there to engage a spring locking mechanism that some (but not all) engines have to prevent the cap from working itself loose during operation.

The Danger of Notched Wrenches

When you head to the auto parts store, you will often find generic, mass-produced stamped-steel wrenches with deep cutouts along the bottom. These notches are designed to slide down and grab those fragile plastic tabs on the base of the housing.

Applying heavy removal torque to these inherently weak plastic tabs almost always results in disaster. Remember, these tabs are meant to engage with the spring lock system; they're not meant to be grabbed and torqued on by a filter wrench. Wrenches that engage these tabs are highly likely to crack or break the tabs entirely, or snap the spring locking mechanism off. If this happens, it can result in a significant oil leak and significant damage.

The Motivx Solution: Precision No-Notch Design

At Motivx Tools, we sometimes have customers return our product, thinking it's a misfit because it lacks these notched cutouts, not realizing that our design is actually the best way to keep those tabs safe! We intentionally design our tools without notches to protect your vehicle.

If you want to stop slipping, save your knuckles, and protect your housing, you have to apply torque evenly across the structural fluted area only. Here is why our no-notch design is the smartest investment for your DIY garage:

• Flute-Only Engagement: The Motivx wrench is engineered with the perfect depth to fully engage the structural flutes without ever touching or stressing those fragile plastic tabs.
• Exact-Fit Sizing: Generic 65mm wrenches have too much slop for the exact 64.16mm Toyota specifications, which rounds off corners. The Motivx wrench is precisely sized to 64.3mm with a machining tolerance within +/- 0.001", hugging the multi-point hex ring perfectly.*
• Zero Flex Under Pressure: We machine the main body of our wrenches right here in the USA from solid 6061-T6 aluminum. It will not expand, flex, or slip over the housing, even when under heavy pressure.
• Built for Torque: We craft the 3/8" drive hub out of 7075 aerospace-grade aluminum to handle heavy torque. Note: For an extremely overtightened oil filter cap where a breaker bar is needed, we recommend using a 1/2" drive 24mm or 15/16" socket which fits over the hex portion of the drive, with a 1/2" breaker bar.

*If you get a slightly different measurement from 64.3mm, this is because we have sized the internal diameter of the wrench to account for thermal expansion and the best fit across a variety of filters.

Designed for Professionals. Used by Everyone.

We are a small family-owned and operated company based in Washington State, and we operate a full CNC machine shop to ensure our tools are built to last and engineered to perform. Stop fighting your vehicle and risking expensive damage with inferior, notched tools. Check out our full filter wrench lineup:

By upgrading to a precision Motivx oil filter wrench, you take the guesswork out of your maintenance routine. Backed by a Limited Lifetime Guarantee, it is the absolute last filter wrench you will ever have to buy!
