Toyota Sienna Oil Service Guide
Changing the oil in your Sienna? We've got step-by-step instructions, helpful videos, part numbers and recommended tools, and some tips and tricks too.
NOTE: We're still creating this guide. Please check back later!

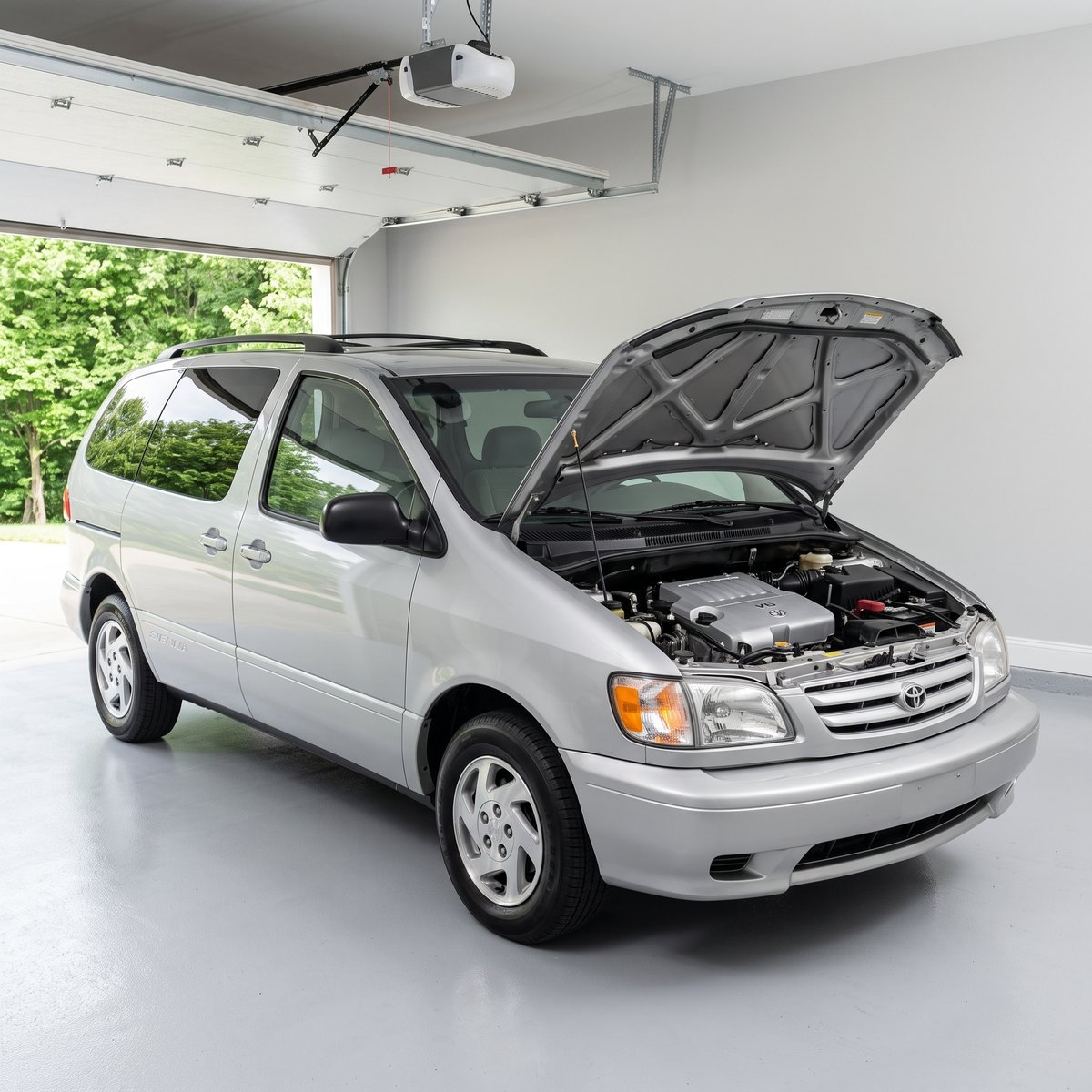

| Vehicle Specs: 1st Gen Toyota Sienna (XL10: 1998–2003) | |
|---|---|
| Engine code | 1MZ-FE |
| Engine size and configuration | 3.0L V-6 |
| Engine oil capacity w/ filter change | 5.0 US qts |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 43 Nm / 32 ft lbs |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |

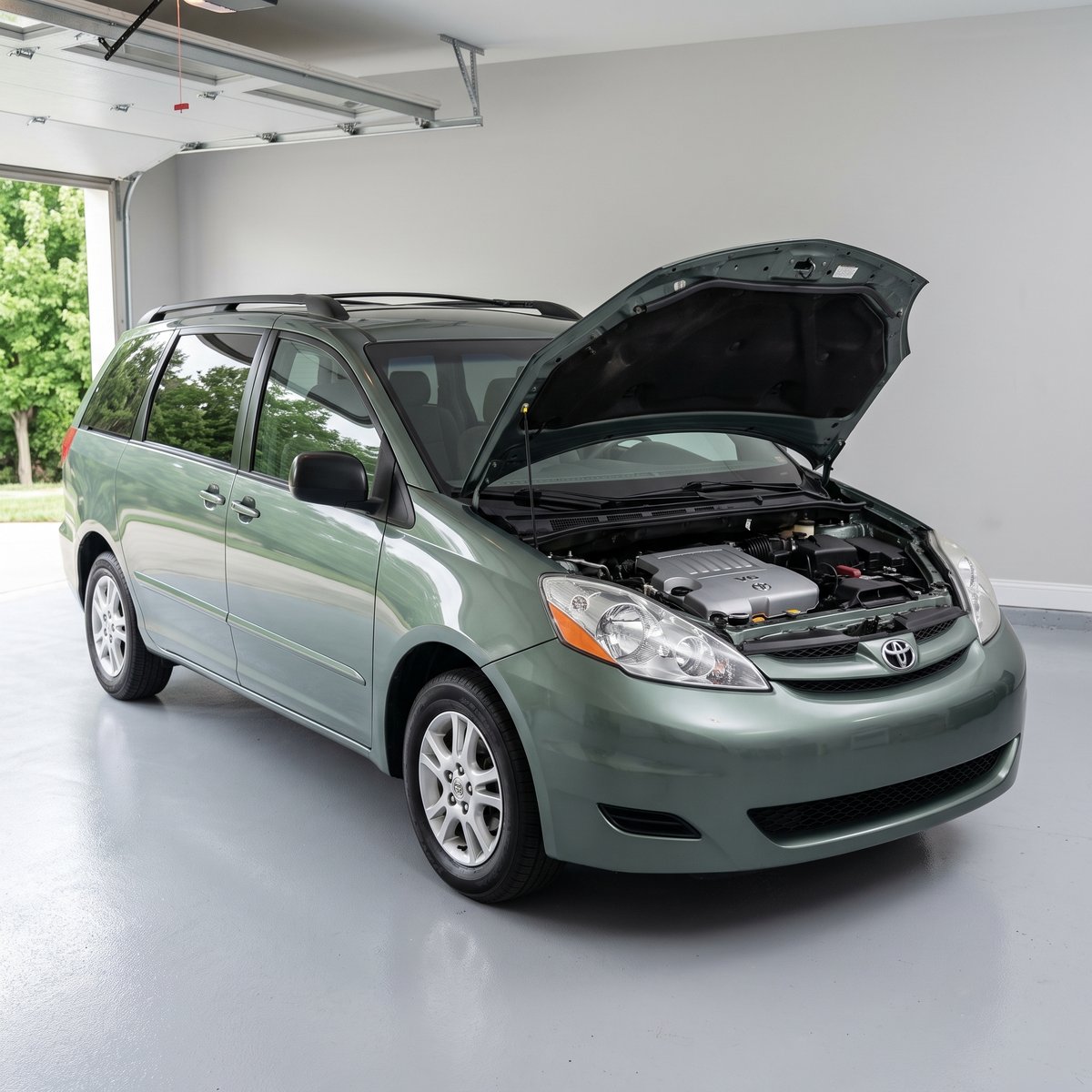

| Vehicle Specs: 2nd Gen Toyota Sienna (XL20: 2004–2010) | |
|---|---|
| Engine code | 3MZ-FE (3.3L '04–'06) / 2GR-FE (3.5L '07–'10) |
| Engine size and configuration | 3.3L V-6 / 3.5L V-6 |
| Engine oil capacity w/ filter change | 5.0 US qts (3.3L) / 6.4 US qts (3.5L) |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 43 Nm / 32 ft lbs (3.3L) / 40 Nm / 30 ft lbs (3.5L) |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Cartridge filter for 3.5L; Spin-on filter for 3.3L) |

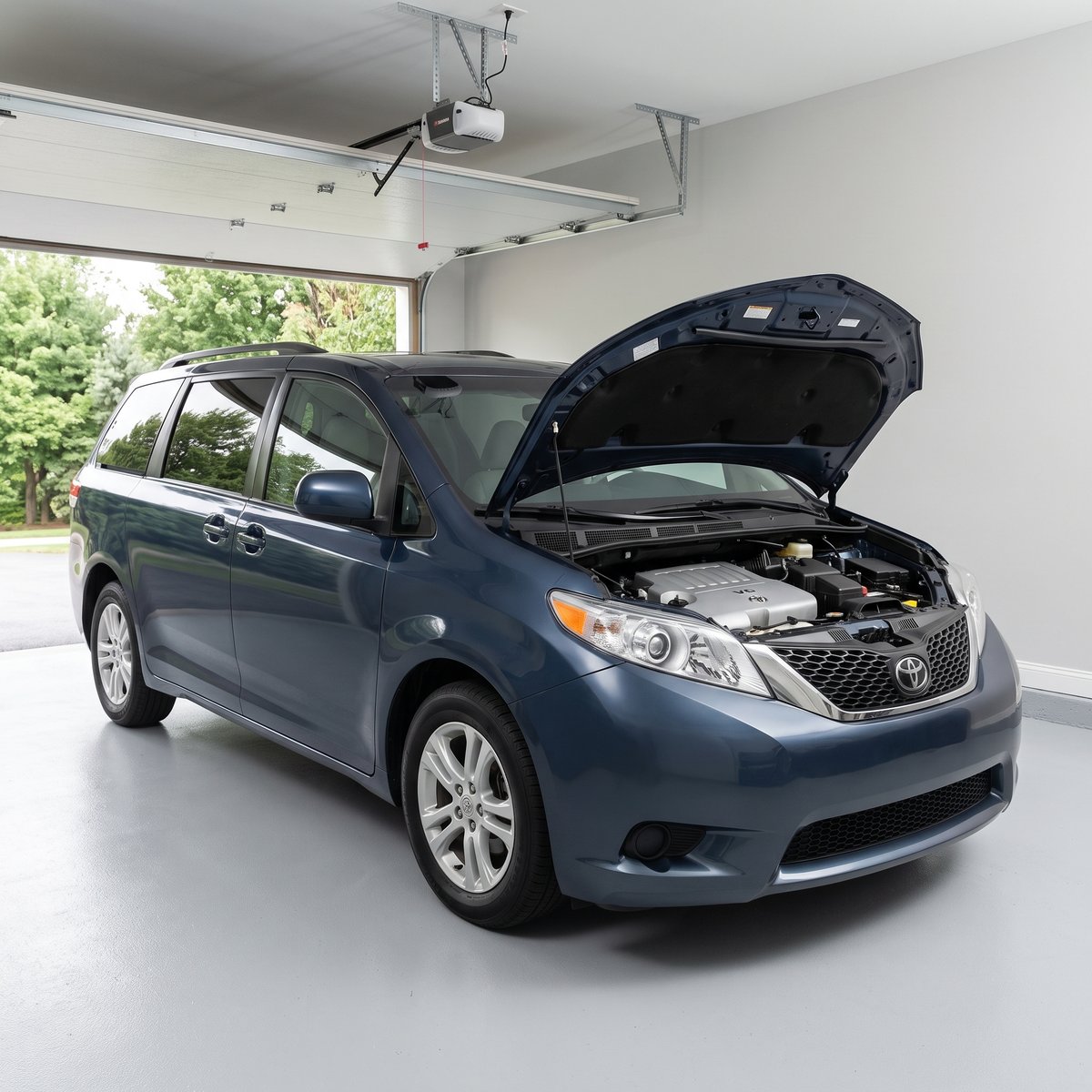

| Vehicle Specs: 3rd Gen Toyota Sienna (XL30: 2011–2020) | |
|---|---|
| Engine code | 1AR-FE (2.7L '11–'12) / 2GR-FE (3.5L '11–'16) / 2GR-FKS (3.5L '17–'20) |
| Engine size and configuration | 2.7L Inline-4 / 3.5L V-6 |
| Engine oil capacity w/ filter change | 4.6 US qts (2.7L) / 6.4 US qts ('11–'16 3.5L) / 5.7 US qts ('17–'20 3.5L) |
| Engine oil viscosity (SAE) | 0W-20 |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Cartridge filter) |
| Vehicle Specs: 4th Gen Toyota Sienna (XL40: 2021–2026) | |
|---|---|
| Engine code | A25A-FXS |
| Engine size and configuration | 2.5L Inline-4 Hybrid |
| Engine oil capacity w/ filter change | 4.8 US qts |
| Engine oil viscosity (SAE) | 0W-16 (0W-20 acceptable for temporary use) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | Spin-on filter: 18 Nm / 13 ft lbs (or hand-tight + 3/4 turn) |
