Toyota Sequoia Oil Service Guide
Changing the oil in your Sequoia? We've got step-by-step instructions, helpful videos, part numbers and recommended tools, and some tips and tricks too.
NOTE: We're still creating this guide. Please check back later!

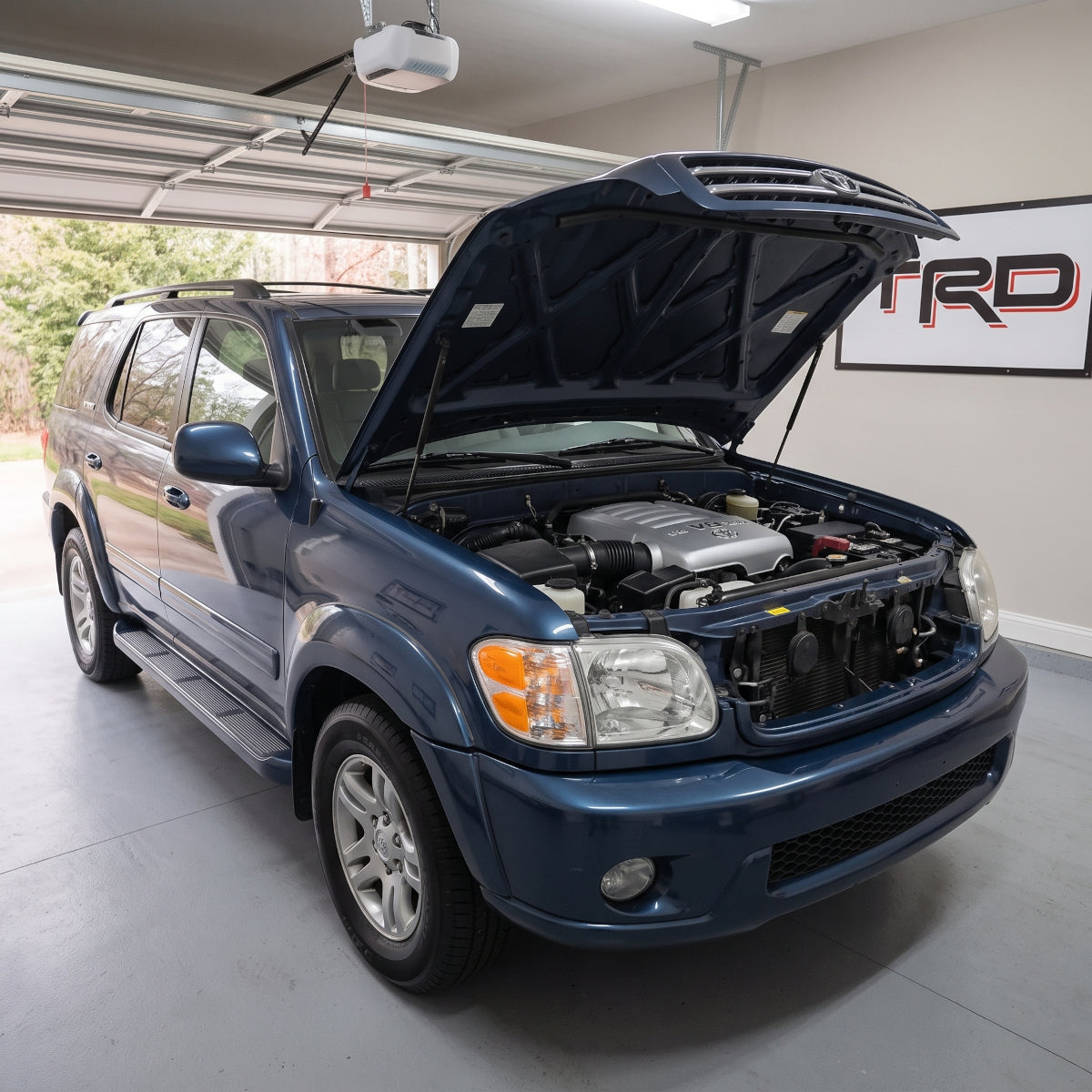

| Vehicle Specs: 1st Gen Toyota Sequoia (2001–2007) | |
|---|---|
| Engine code | 2UZ-FE |
| Engine size and configuration | 4.7L V-8 |
| Engine oil capacity w/ filter change | 6.5 qts |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 39 Nm / 29 ft lbs |
| Oil filter cap torque | 18 Nm / 13 ft lbs |

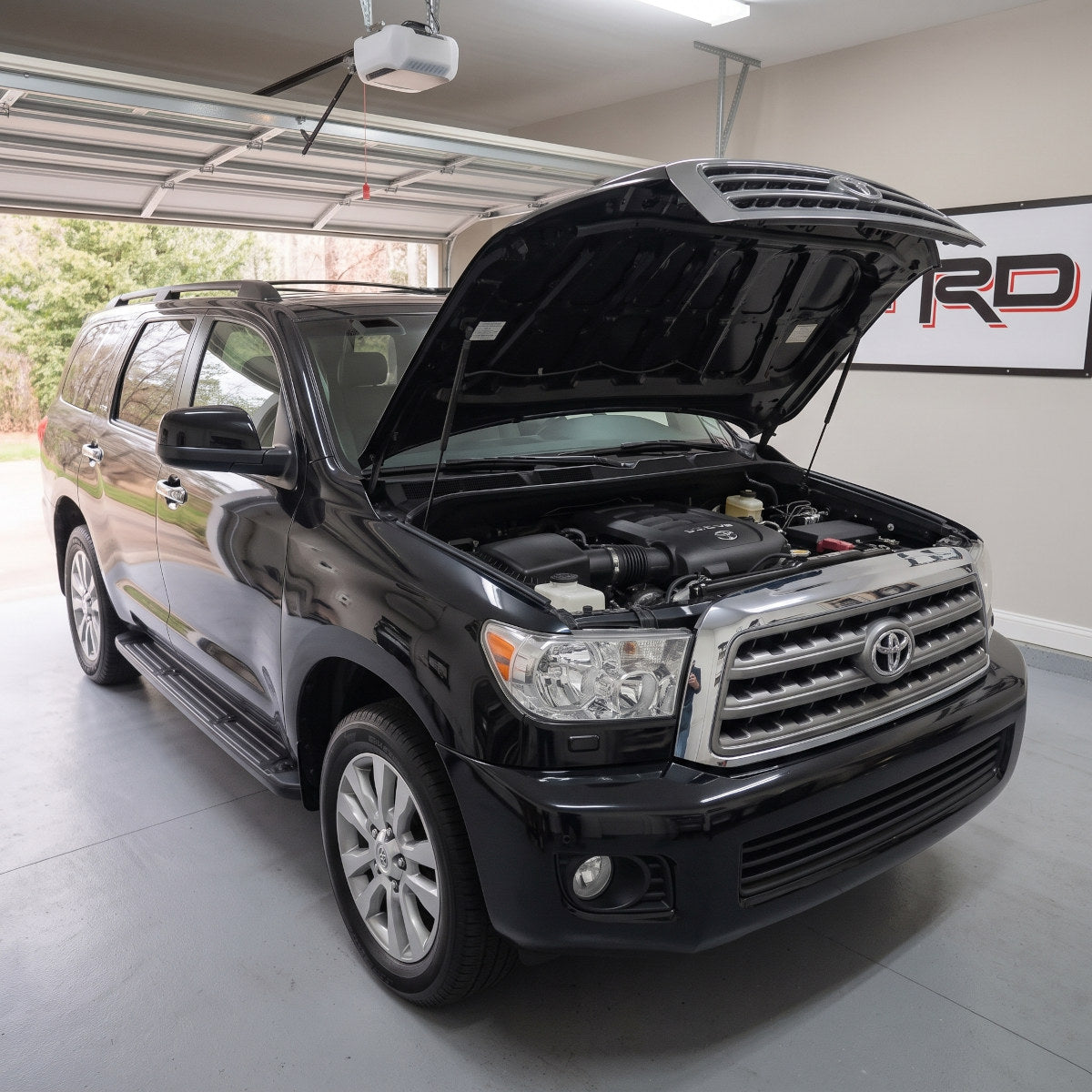

| Vehicle Specs: 2nd Gen Toyota Sequoia (2008–2022) | |
|---|---|
| Engine code | 2UZ-FE (4.7L) / 1UR-FE (4.6L) / 3UR-FE (5.7L) / 3UR-FBE (5.7L Flex Fuel) |
| Engine size and configuration | 4.7L V-8 / 4.6L V-8 / 5.7L V-8 |
| Engine oil capacity w/ filter change | 6.5 qts (4.7L) / 7.9 qts (4.6L) / 7.9–8.5 qts (5.7L) |
| Engine oil viscosity (SAE) | 5W-30 (4.7L) / 0W-20 (4.6L & 5.7L) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Spin-on filter for '08–'09 4.7L: 18 Nm / 13 ft lbs) |
| Vehicle Specs: 3rd Gen Toyota Sequoia (2023–Present) | |
|---|---|
| Engine code | V35A-FTS (i-FORCE MAX Hybrid) |
| Engine size and configuration | 3.4L Twin-Turbo V-6 Hybrid |
| Engine oil capacity w/ filter change | 7.7 qts |
| Engine oil viscosity (SAE) | 0W-20 |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | 25 Nm / 18 ft lbs |
