Toyota Camry Oil Service Guide
Changing the oil in your Camry? We've got step-by-step instructions, helpful videos, part numbers and recommended tools, and some tips and tricks too.
NOTE: We're still creating this guide. Please check back later!

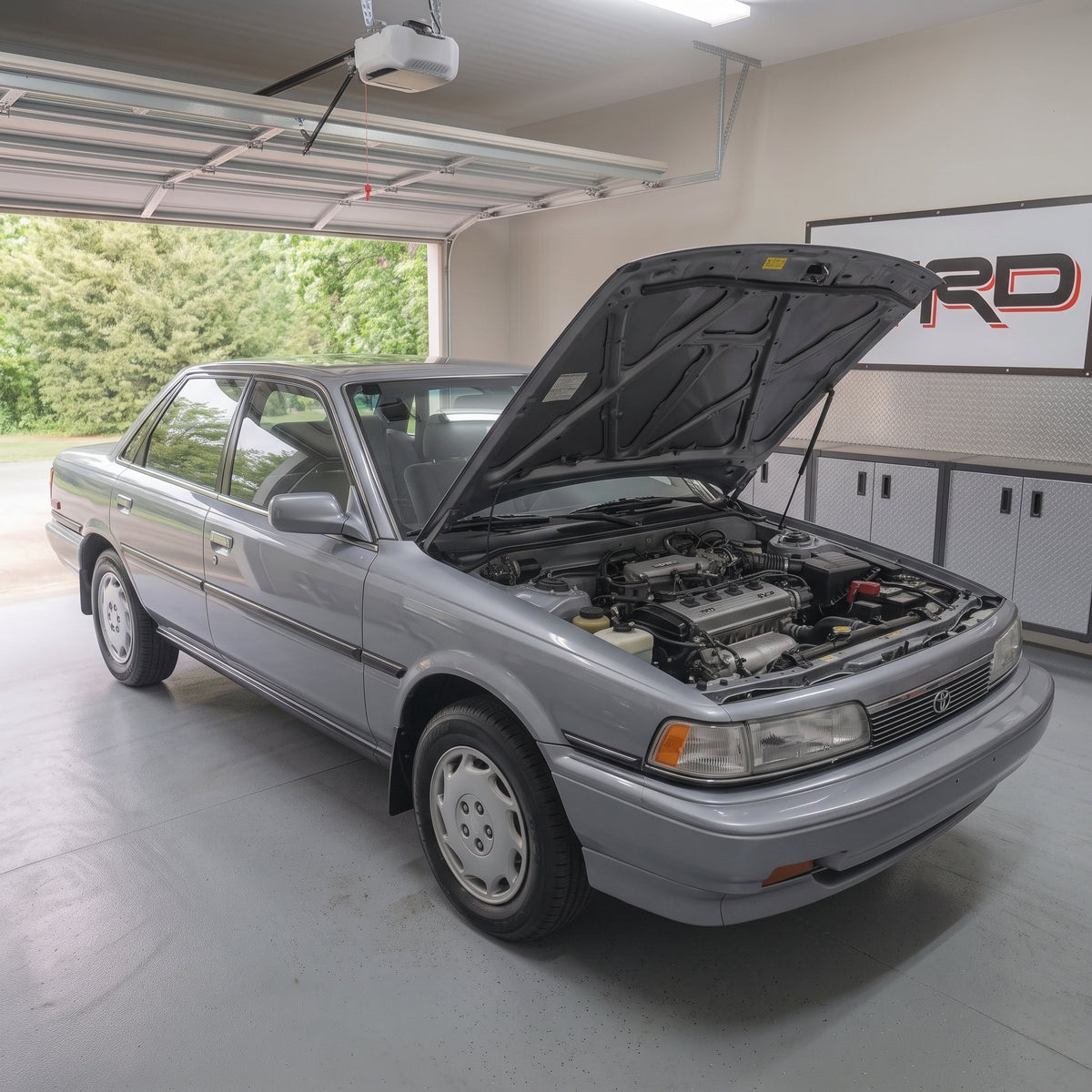

| Vehicle Specs: 2nd Gen Toyota Camry (V20: 1990–1991) | |
|---|---|
| Engine code | 3S-FE (2.0L I4) / 2VZ-FE (2.5L V6) |
| Engine size and configuration | 2.0L Inline-4 / 2.5L V-6 |
| Engine oil capacity w/ filter change | 4.3 US qts (2.0L) / 4.8 US qts (2.5L) |
| Engine oil viscosity (SAE) | 10W-30 / 5W-30 |
| Oil pan drain plug torque | 37 Nm / 27 ft lbs |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |

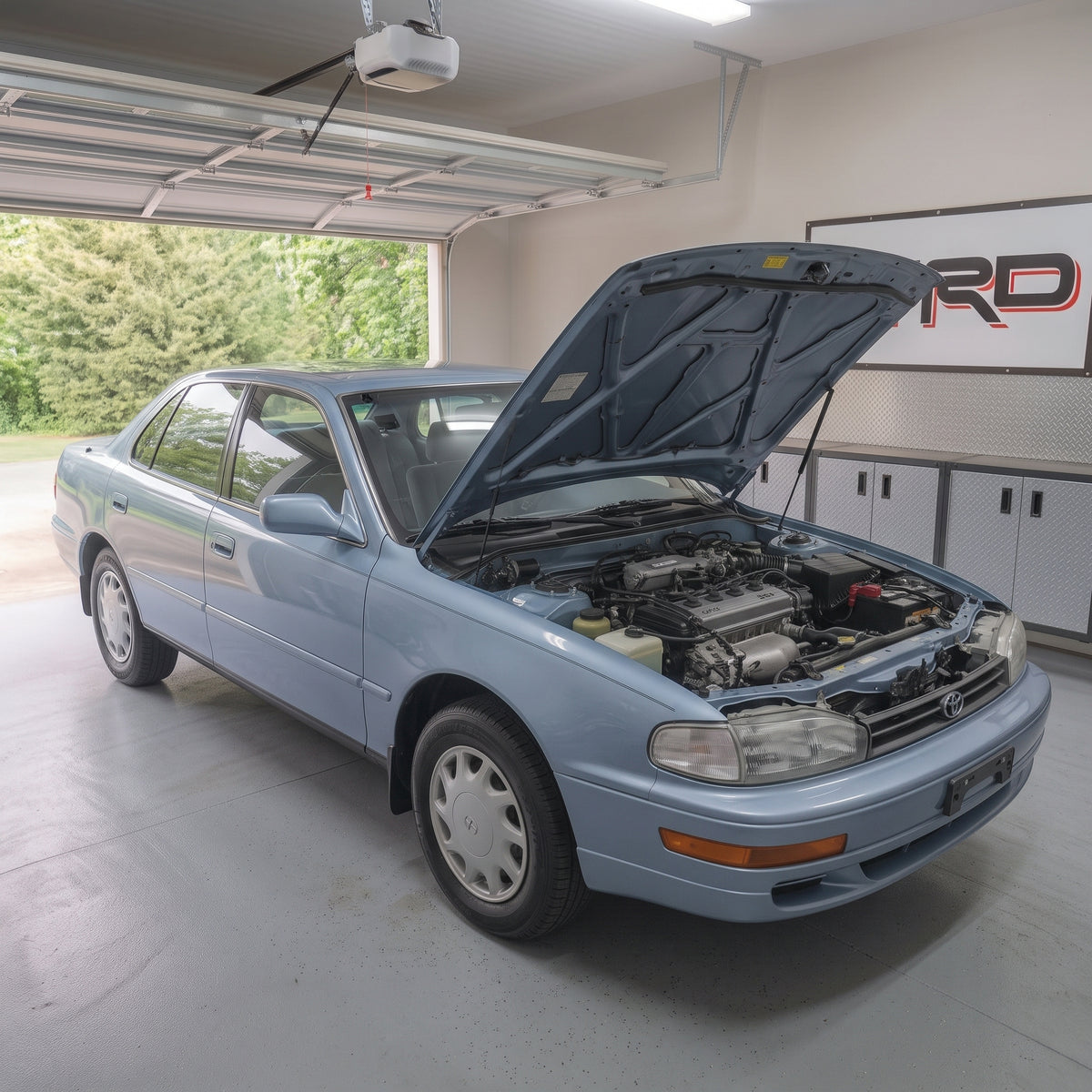

| Vehicle Specs: 3rd Gen Toyota Camry (XV10: 1992–1996) | |
|---|---|
| Engine code | 5S-FE (2.2L I4) / 3VZ-FE (3.0L V6 '92–'93) / 1MZ-FE (3.0L V6 '94–'96) |
| Engine size and configuration | 2.2L Inline-4 / 3.0L V-6 |
| Engine oil capacity w/ filter change | 3.8 US qts (2.2L) / 4.8 US qts (3.0L) |
| Engine oil viscosity (SAE) | 5W-30 / 10W-30 |
| Oil pan drain plug torque | 37 Nm / 27 ft lbs (2.2L) / 43 Nm / 32 ft lbs (3.0L) |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |

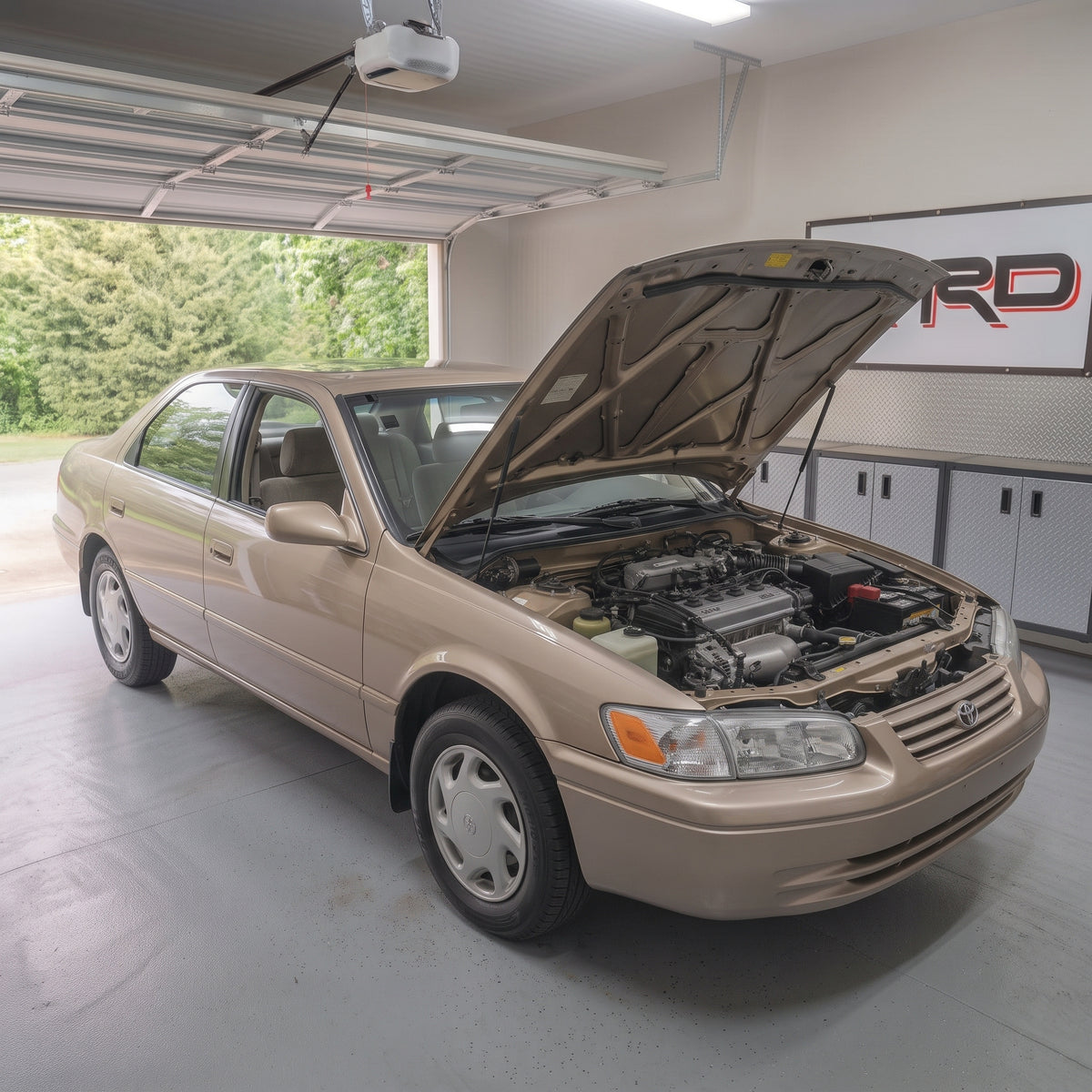

| Vehicle Specs: 4th Gen Toyota Camry (XV20: 1997–2001) | |
|---|---|
| Engine code | 5S-FE (2.2L I4) / 1MZ-FE (3.0L V6) |
| Engine size and configuration | 2.2L Inline-4 / 3.0L V-6 |
| Engine oil capacity w/ filter change | 3.8 US qts (2.2L) / 5.0 US qts (3.0L) |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 37 Nm / 27 ft lbs (2.2L) / 43 Nm / 32 ft lbs (3.0L) |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |

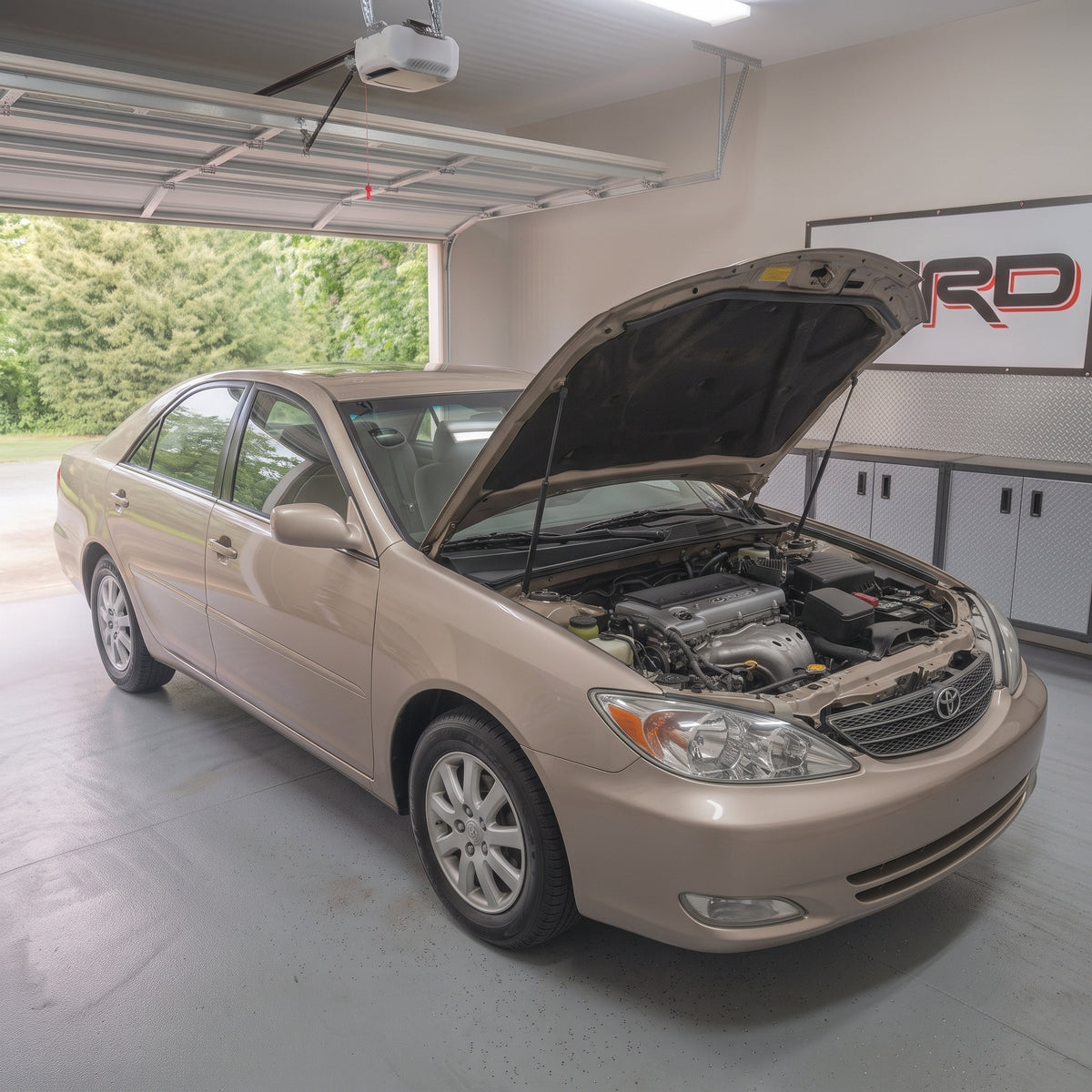

| Vehicle Specs: 5th Gen Toyota Camry (XV30: 2002–2006) | |
|---|---|
| Engine code | 2AZ-FE (2.4L I4) / 1MZ-FE (3.0L V6 '02–'06) / 3MZ-FE (3.3L V6 '04–'06 SE) |
| Engine size and configuration | 2.4L Inline-4 / 3.0L V-6 / 3.3L V-6 |
| Engine oil capacity w/ filter change | 3.8 US qts (2.4L) / 5.0 US qts (3.0L & 3.3L) |
| Engine oil viscosity (SAE) | 5W-30 |
| Oil pan drain plug torque | 25 Nm / 18 ft lbs (2.4L) / 43 Nm / 32 ft lbs (3.0L & 3.3L) |
| Oil filter cap torque | Spin-on filter: Hand-tight or 3/4 turn after gasket contact |
| Vehicle Specs: 6th Gen Toyota Camry (XV40: 2007–2011) | |
|---|---|
| Engine code | 2AZ-FE (2.4L '07–'09) / 2AR-FE (2.5L '10–'11) / 2AZ-FXE (2.4L Hybrid) / 2GR-FE (3.5L V6) |
| Engine size and configuration | 2.4L Inline-4 / 2.5L Inline-4 / 3.5L V-6 |
| Engine oil capacity w/ filter change | 4.0 US qts (2.4L Gas/Hybrid) / 4.7 US qts (2.5L) / 6.4 US qts (3.5L) |
| Engine oil viscosity (SAE) | 5W-20 / 0W-20 (2.4L/2.5L) / 5W-30 (3.5L V6) |
| Oil pan drain plug torque | 25 Nm / 18 ft lbs (2.4L) / 40 Nm / 30 ft lbs (2.5L & 3.5L) |
| Oil filter cap torque | 25 Nm / 18 ft lbs (Cartridge filter for 2.5L & 3.5L; Spin-on filter for 2.4L) |

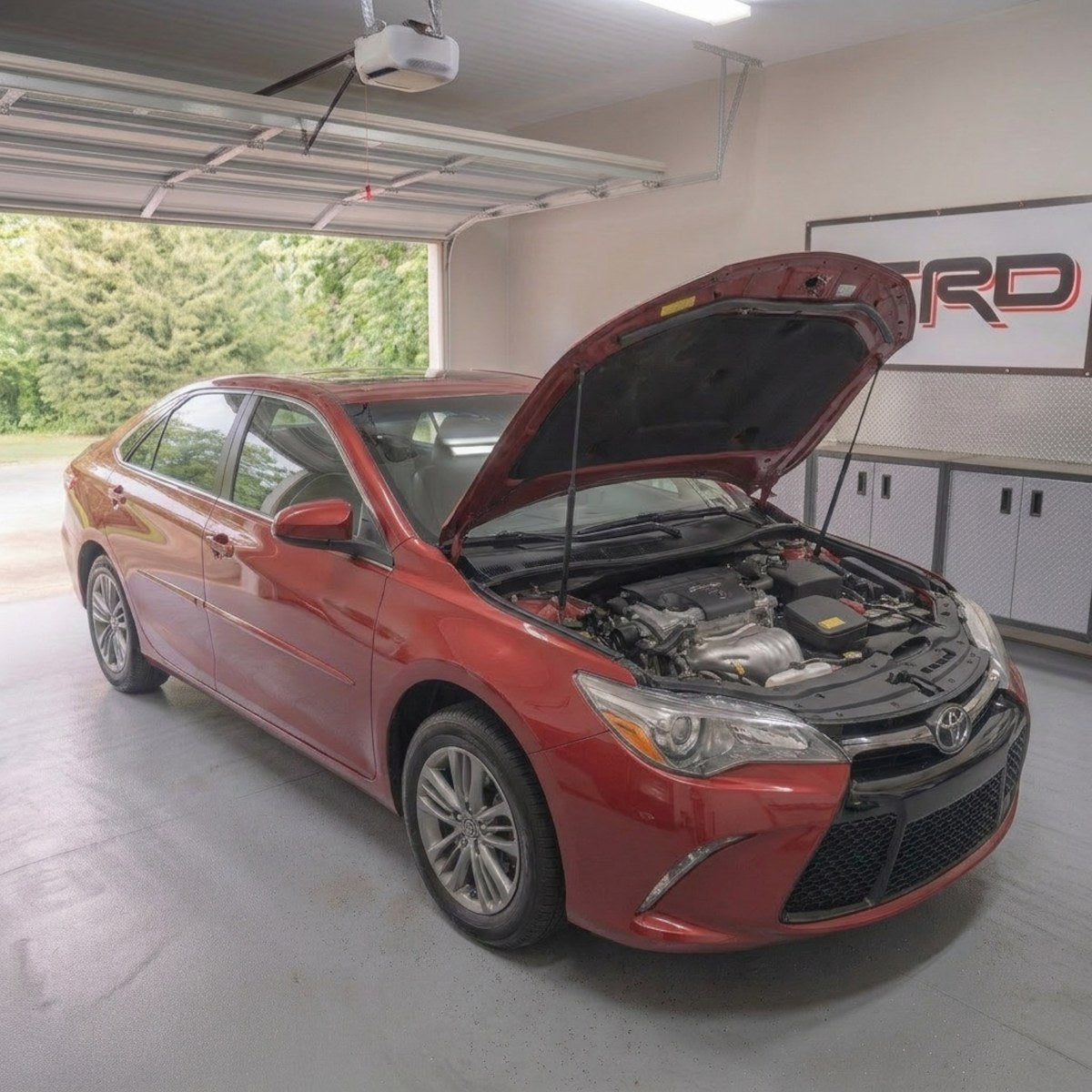

| Vehicle Specs: 7th Gen Toyota Camry (XV50: 2012–2017) | |
|---|---|
| Engine code | 2AR-FE (2.5L Gas) / 2AR-FXE (2.5L Hybrid) / 2GR-FE (3.5L V6) |
| Engine size and configuration | 2.5L Inline-4 / 2.5L Inline-4 Hybrid / 3.5L V-6 |
| Engine oil capacity w/ filter change | 4.7 US qts (2.5L Gas) / 4.5 US qts (2.5L Hybrid) / 6.4 US qts (3.5L) |
| Engine oil viscosity (SAE) | 0W-20 (2.5L) / 5W-30 (3.5L V6) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | 25 Nm / 18 ft lbs |

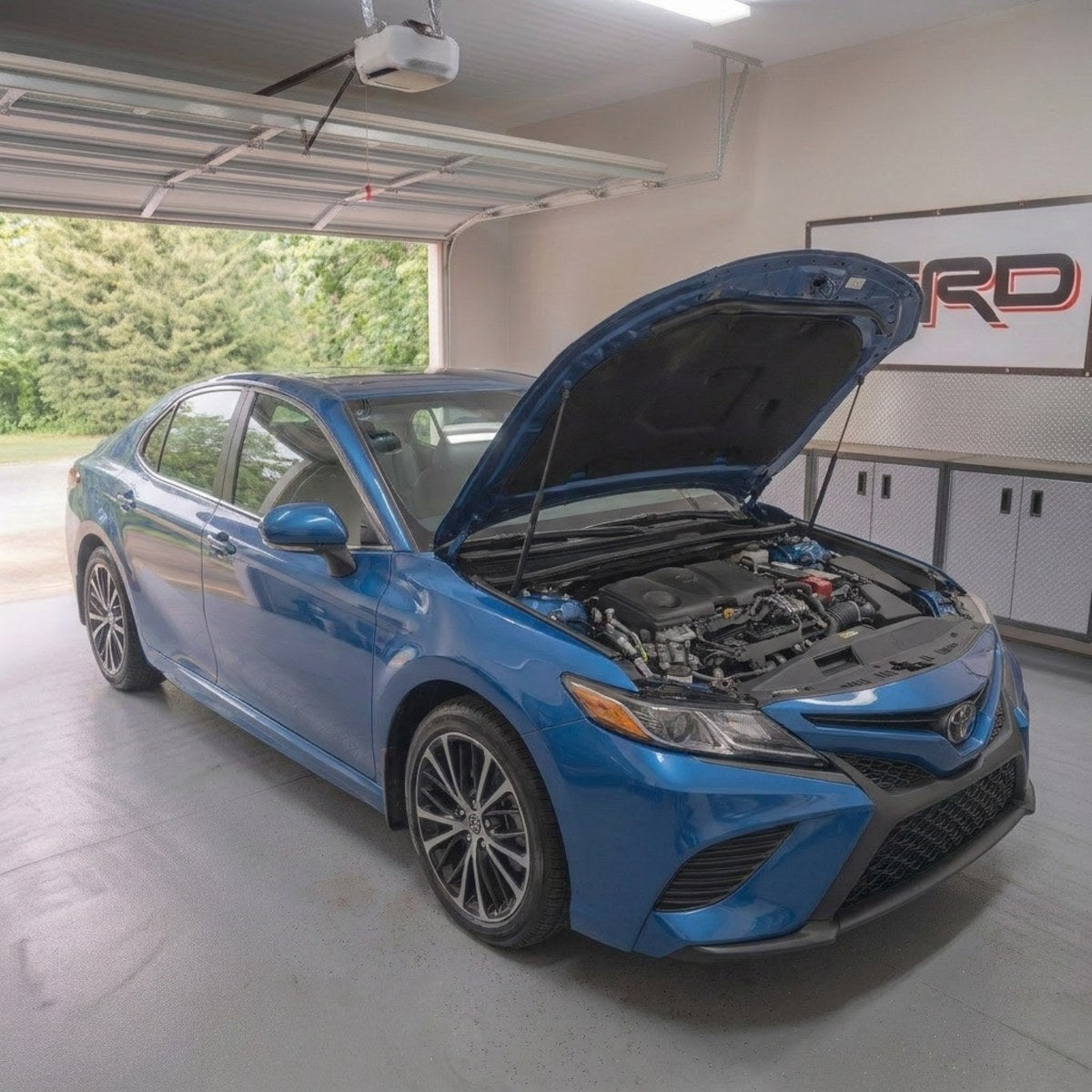

| Vehicle Specs: 8th Gen Toyota Camry (XV70: 2018–2024) | |
|---|---|
| Engine code | A25A-FKS (2.5L Gas) / A25A-FXS (2.5L Hybrid) / 2GR-FKS (3.5L V6) |
| Engine size and configuration | 2.5L Inline-4 / 2.5L Inline-4 Hybrid / 3.5L V-6 |
| Engine oil capacity w/ filter change | 4.8 US qts (2.5L Gas/Hybrid) / 5.7 US qts (3.5L V6) |
| Engine oil viscosity (SAE) | 0W-16 (2.5L Gas/Hybrid) / 0W-20 (3.5L V6) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | Spin-on filter: 18 Nm / 13 ft lbs (2.5L) / Cartridge cap: 25 Nm / 18 ft lbs (3.5L) |
| Vehicle Specs: 9th Gen Toyota Camry (XV80: 2025–2026) | |
|---|---|
| Engine code | A25A-FXS (5th Gen Toyota Hybrid System) |
| Engine size and configuration | 2.5L Inline-4 Hybrid |
| Engine oil capacity w/ filter change | 4.8 US qts |
| Engine oil viscosity (SAE) | 0W-8 (0W-16 acceptable for temporary use) |
| Oil pan drain plug torque | 40 Nm / 30 ft lbs |
| Oil filter cap torque | Spin-on filter: 18 Nm / 13 ft lbs (or hand-tight + 3/4 turn) |
